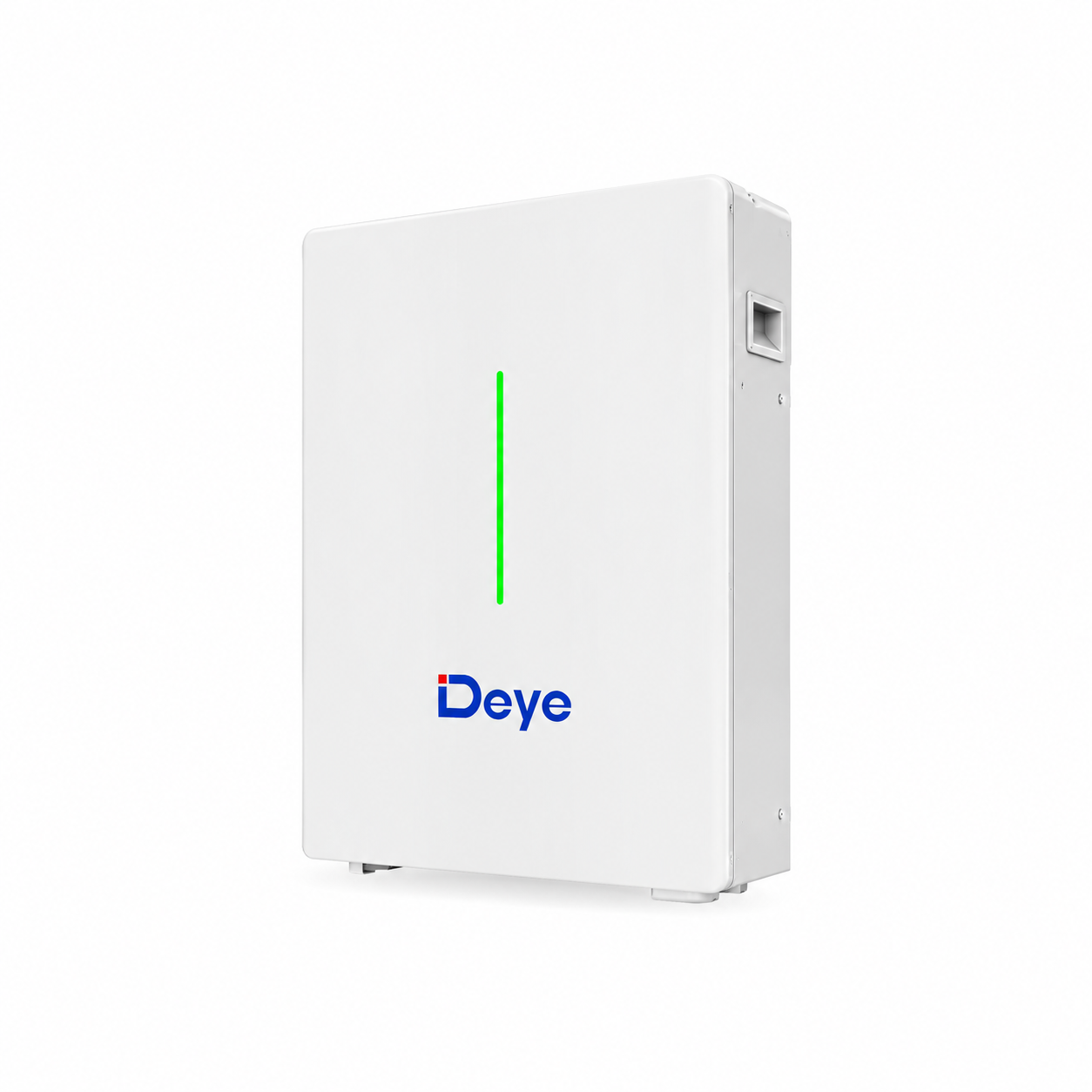

Deye Lithium Battery 10.6kWh
– Lithium iron phosphate battery developed and produced by Deye – Provides reliable power for various types of equipment and systems. – Ideal for high power, limited installation space, restricted load-bearing, and long cycle life applications. – Built-in BMS (Battery Management System) manages and monitors voltage, current, and temperature. – BMS balances cell charging to extend cycle life.n– Multiple batteries can connect in parallel for increased capacity and longer power support. – Features a modular design for easy expansion as energy storage needs grow. – Additional battery modules can be added without overhauling the system. – Flexible design suitable for both residential and commercial applications. – Cost-effective way to scale energy storage as power demands change.
The Deye RW-F10.6 10.6kWh Lithium Battery is a low-voltage LiFePO₄ energy storage solution designed for residential and commercial applications. With a nominal energy capacity of 10.64kWh and 9.58kWh usable energy, it provides a dependable option for solar energy storage, backup power and increasing self-consumption.
Built with cobalt-free lithium iron phosphate chemistry, the RW-F10.6 combines safety, long service life and high energy density. Its integrated intelligent Battery Management System (BMS) monitors important battery conditions including voltage, current and temperature while helping balance individual cells to support long-term performance.
The battery supports a recommended 90% depth of discharge and offers a cycle life of 6,000 cycles or more under the specified test conditions. Deye also provides a 10-year standard warranty, subject to the manufacturer’s warranty conditions.
For larger installations, the RW-F10.6 features a modular design that allows up to 32 battery packs to operate in parallel, providing a maximum storage capacity of approximately 340kWh. This makes the battery suitable for systems that may need to expand as energy requirements increase.
Installation is flexible, with support for both wall-mounted and floor-mounted configurations. The flat design helps reduce installation space, while CAN 2.0 and RS485 communication provide integration options for compatible energy systems.
Key Features
- 10.64kWh nominal energy
- 9.58kWh usable energy
- 51.2V nominal voltage
- Cobalt-free LiFePO₄ battery chemistry
- Recommended 90% depth of discharge
- ≥6,000 cycle design life under specified conditions
- Built-in intelligent BMS
- Maximum charge current of 200A
- Maximum discharge current of 240A
- Expandable to 32 batteries in parallel
- Maximum system capacity of approximately 340kWh
- CAN 2.0 and RS485 communication
- Wall-mounted or floor-mounted installation
- 10-year warranty, subject to Deye warranty conditions
- Suitable for residential and commercial energy storage applications
