Luna2000-215Kwh

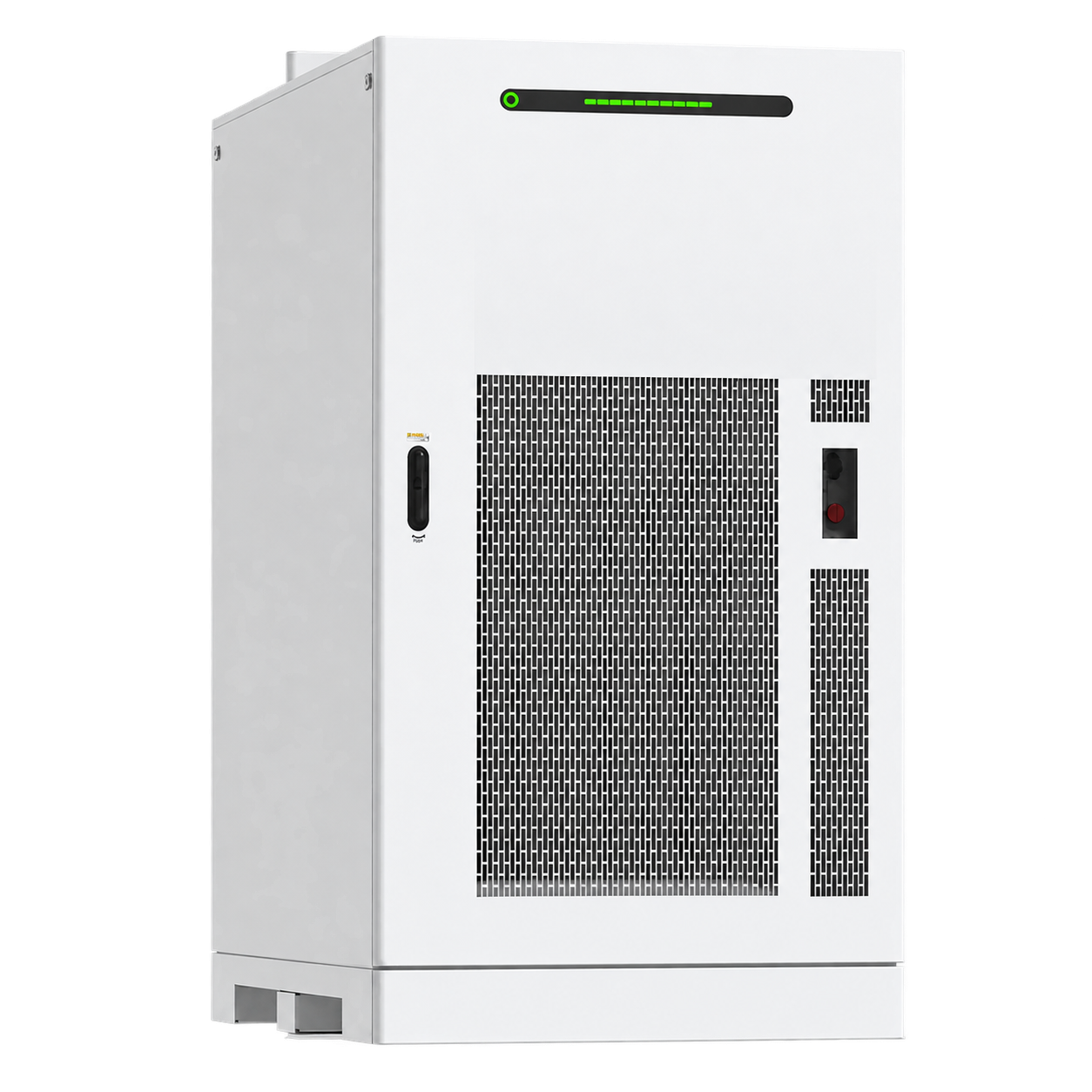

The Huawei LUNA2000-215-2S10 Smart String ESS is a powerful energy storage solution designed to complement commercial and industrial PV systems. With a 215 kWh capacity, it provides peak shaving, load shifting, and backup power, ensuring energy availability and reducing electricity costs.
Engineered for maximum efficiency (91.3%) and 0~100% depth of discharge, it delivers full-cycle performance without compromising battery life. The system uses LFP battery chemistry for enhanced thermal stability and safety, while a hybrid cooling system ensures consistent performance in harsh climates.
Its intelligent design includes active balancing, automatic SOC calibration, and pack-level fire suppression, making it one of the safest ESS units in the market. Remote monitoring via Ethernet or optical fiber and compatibility with Huawei’s FusionSolar platform enable effortless integration and management.
The LUNA2000-215-2S10 is an ideal solution for businesses looking to enhance self-consumption, ensure uninterrupted operations, and optimize energy investments with intelligent, scalable battery storage.
Model type LUNA2000-215-2S10
Rated capacity 215.0kWh
Maximum cycle rate 0.5 CP
Maximum cycle efficiency 91.3%
Depth of charge and discharge 0~100%
Dimensions (W x D x H) 1150mm×1800mm×2100mm
Weight ≤ 2.8 T
Operating temperature range -30 °C ~ 55 °C (＞50°C Derating)
Storage temperature range -35 °C ~ 60 °C
Operating humidity range 0 ~ 100% (non-condensing)
Maximum operating altitude 4,000 m
System temperature control mode Hybrid cooling
Balance mode Active balance
SOC calibration mode Automatic
Fire suppression mode Directional gas exhaust, Top explosion vent, Aerosol
Auxiliary power supply 176~264 Vac，single phase，≤5 kW
Power consumption standby ≤150 W
Communication port Ethernet / Optical fiber
Communication protocol Modbus TCP
Protection degree IP55
EMC protection rating Class B
Noise (rated operating condition) 65 dB(A)
Lightning protection Type II (AC port)
Protection mode Anti-islanding protection, residual current detection, insulation resistance detection, AC overcurrent
protection, and AC cable connection protection
Environment RoHS6
Certification standards UL9540A; UN38.3; IEC 62477-1; IEC 62040-1; IEC 61000-6-1/2/3/4; IEC61727
Battery Parameters (DC)
Cell material LFP
Rated battery capacity 280Ah
System battery configuration 240S1P
Number of battery packs 4
Operating voltage range 648~864 V
Rated DC current 140 A
PCS Parameters (AC)
PCS model type PCS2000-108K-MB1
Rated output power 108 kW
Rated AC current 164.1 A
AC voltage & frequency 380 / 400 / 415 V (3P4W)，50 / 60 Hz
Adjustable power factor range -1 … +1
AC current harmonics THDi (rated operating condition) ≤1.5 %
