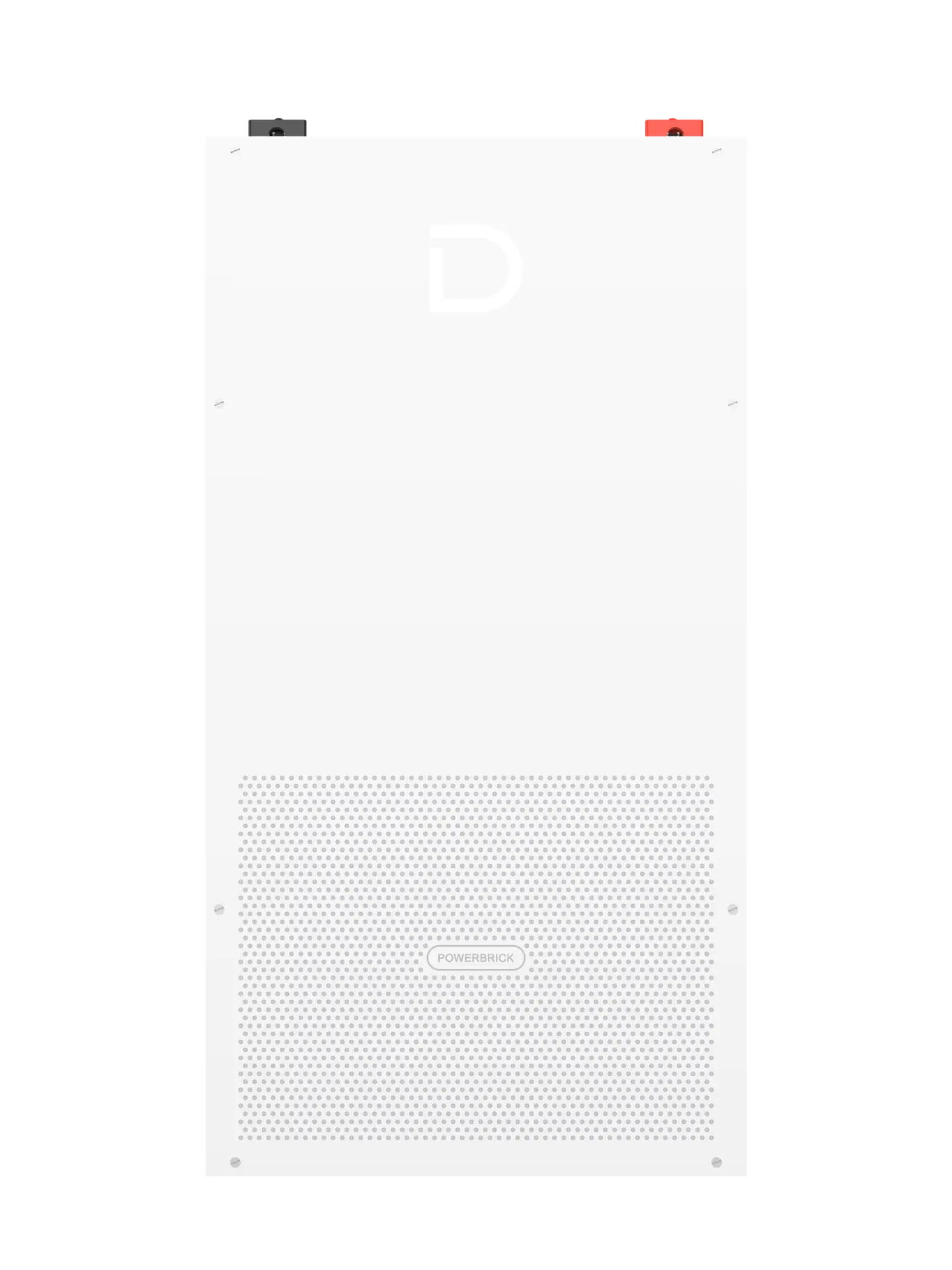

Dyness Power Brick (14.336 kWh)
The Dyness PowerBrick is a sleek, compact, low‑voltage LiFePO₄ battery specifically designed for household and light commercial energy storage. Combining modular scalability with enhanced cycle life and safety, it’s ideal for both backup and daily solar usage.
The Dyness Power Brick (14.336 kWh) is a high-capacity lithium energy storage solution designed for residential and commercial solar systems. It stores excess solar energy and delivers reliable backup power when needed. As a result, it helps improve energy independence and reduce reliance on the grid.
This advanced battery system uses lithium iron phosphate (LiFePO₄) technology. In addition, it provides strong safety performance, long cycle life, and stable energy output. Therefore, it ensures consistent performance over many years of daily use.
Furthermore, the modular design makes installation simple and flexible. You can scale the system based on your energy needs, which makes it ideal for both small and expanding solar installations. At the same time, it integrates easily with hybrid inverters and energy management systems.
Key Features:
- Capacity & Voltage: 14.336 kWh nominal, 51.2 V / 280 Ah configuration.
- Compact & Lightweight Design: 24% smaller footprint and 25% lighter than previous versions, with optional bottom wheels for easier handling.
- Power Delivery: Continuous discharge current rated at 200 A (~10 kW), with maximum charge/discharge also up to 200 A.
- Durability & Safety: Depth of discharge up to 95%, rated for unlimited cycles within 10 years. Optional 5-second aerosol fire suppression system enhances safety. IP20 enclosure.
- Massive Scalability: Supports up to 50 modules in parallel, enabling a total system capacity from 14.3 kWh to 716.8 kWh—no external hub required.
- Connectivity & Control: Built-in Wi‑Fi with OTA firmware updates; communication interfaces include CAN and RS‑485.
Moreover, the Dyness Power Brick supports backup power during outages and helps with load shifting and peak shaving. Consequently, it improves energy efficiency and reduces electricity costs.
Ultimately, the Dyness Power Brick (14.336 kWh) delivers a reliable, scalable, and efficient energy storage solution for modern solar power systems.
Technical Specifications
| Spec | Value |
|---|---|
| Nominal Energy | 14.336 kWh |
| Voltage / Capacity | 51.2 V / 280 Ah |
| Max Continuous Current | 200 A (~10 kW) |
| Depth of Discharge (DoD) | 95% |
| Cycle Life | Designed for >8,000 cycles / 10 years |
| Max Parallel Units | Up to 50 modules (up to 716.8 kWh) |
| Dimensions (W × D × H) | ~435 × 233 × 857 mm |
| Weight | ~114 kg |
| Protection | IP20, Optional Aerosol fire extinguisher |
| Communications | CAN, RS‑485, Wi‑Fi OTA capability |
Compatibility
Designed to pair seamlessly with many major hybrid inverter brands including SMA, Victron, Delios, GoodWe, Solis, Deye, SAJ, Sungrow, and others.
Ideal For
- Residential or small commercial energy storage projects, whether on-grid hybrid setups or backup-first installations.
- Expandable installations where energy needs may grow over time—start with one module and scale as required.
- Installations looking for reliable LiFePO₄ chemistry, long life, and robust safety mechanisms.
