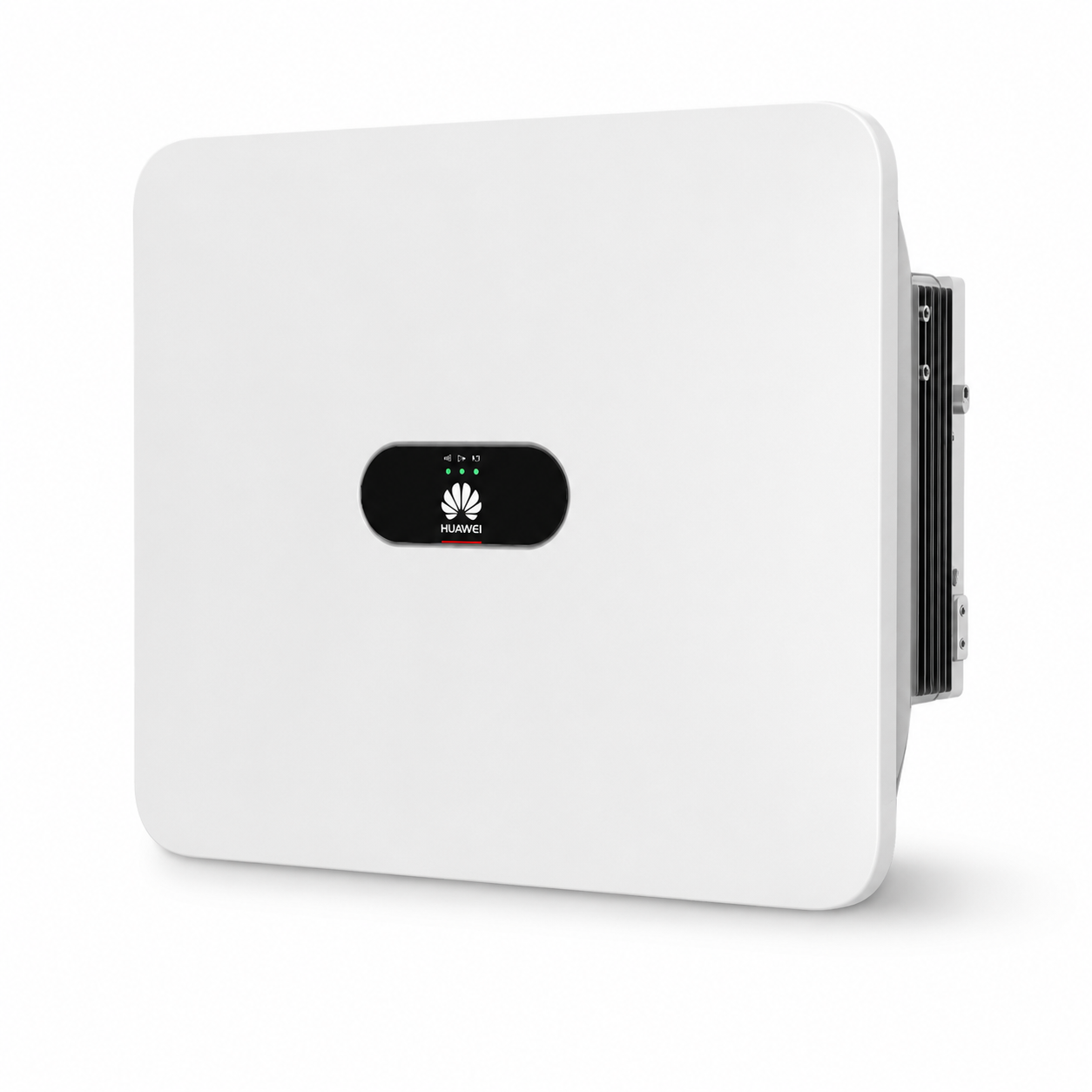

SUN2000-12/15/17/20/25KTL-M5Smart PV Controller

Smarter, Safer, More Efficient Inverter for C&I Solar Systems

Power your commercial or industrial installation with Huawei’s next-generation inverter — the SUN2000-M5 series. Designed for enhanced safety, higher yields, and intelligent maintenance, this smart PV controller combines cutting-edge technology with robust reliability.

Key Features

Maximum Efficiency of 98.4% Delivers exceptional performance even under challenging conditions.
Up to 2 MPPT Inputs Flexible string design for optimal energy harvesting.
AI-Powered Arc Fault Protection (AFCI) Advanced safety that detects and eliminates fire risks.
PID Recovery Built-in Extends PV module lifespan by reversing degradation.
Touch-Free Maintenance Online smart I-V curve diagnosis for string-level analysis.
No Fuses or Quick-Wear Parts Reduces maintenance and improves system uptime.
Supports WLAN, Ethernet & 4G Versatile communication options for seamless integration.

Add to quote

Central_Solar_Supplies_Huawei_SUN2000-12-25KTL_Datasheet

Central_Solar_Supplies_Huawei_SUN2000-12-25KTL_User_Manual

Central_Solar_Supplies_Huawei_Warranty

The Huawei SUN2000-12/15/17/20/25KTL-M5 Smart PV Controller delivers efficient three-phase solar power conversion for commercial and larger residential PV installations. Available in 12 kW, 15 kW, 17 kW, 20 kW and 25 kW models, the M5 range gives installers the flexibility to match inverter capacity to a variety of system sizes. Each model reaches a maximum efficiency of 98.4%, helping maximise the energy produced by the PV array.

Furthermore, Huawei designed the M5 range to accommodate demanding PV configurations. The controllers support a maximum input voltage of 1,100 V, a nominal MPPT operating range of 200 V to 1,000 V and two MPP trackers. Depending on the model, Huawei recommends maximum PV capacities ranging from 18 kWp to 37.5 kWp, which gives installers greater flexibility when designing different solar systems.

Safety also plays a major role in the design. The SUN2000-M5 range includes AI-powered arc-fault protection, anti-islanding protection, AC overcurrent protection, DC reverse-polarity protection and PV string fault detection. In addition, integrated Type II DC surge protection, Class II AC surge protection and PID recovery help provide further system protection during operation.

For easier monitoring and system management, the controllers include integrated WLAN and support the Huawei FusionSolar App. They also provide RS485 communication, while compatible Smart Dongles can add WLAN, Ethernet or mobile connectivity. Moreover, the range supports selected Huawei power optimizers, giving installers additional options for module-level optimisation and system design.

Finally, Huawei equips the M5 range for demanding installation environments. An IP66-rated enclosure protects the controller against dust and water ingress, while intelligent air cooling helps manage operating temperatures from -25°C to 60°C. At approximately 21 kg, the compact design also helps simplify handling and installation.
