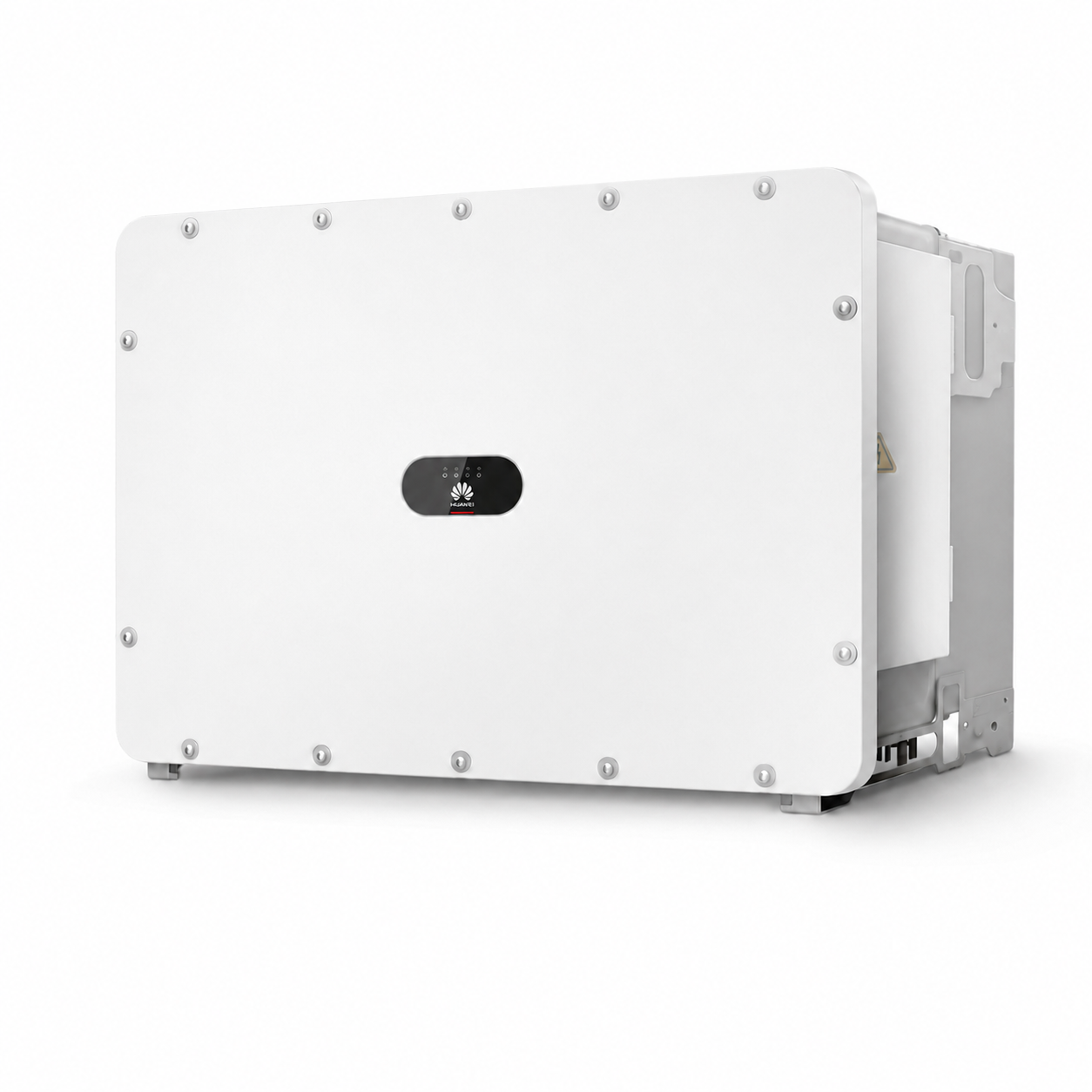

SUN2000- 150K- MG0 Smart PV Controller
The SUN2000-150K-MG0 Smart PV Controller by Huawei is a top-tier inverter built for large-scale solar power plants and commercial deployments. Supporting a massive 150 kW nominal output, it integrates 7 maximum power point trackers (MPPTs) to maximize energy generation under varying environmental and shading conditions.
With 98.8% efficiency at 480 V, smart string-level disconnection, and advanced arc fault and ground-fault protection, this inverter sets the standard for energy security and reliability. Its support for MBUS communication, PID recovery, and smart connector temperature detection ensures optimal performance and diagnostics at every level.
Encased in an IP66-rated enclosure, the SUN2000-150K-MG0 can operate in extreme weather conditions, while smart air cooling maintains optimal temperatures. It’s a smart choice for developers and EPCs looking to combine scale with intelligent control.
The Huawei SUN2000-150K-MG0 is a high-capacity, smart string inverter designed for utility-scale solar installations. With 7 MPPTs, robust safety mechanisms, and cutting-edge optimization, it delivers high yields, operational safety, and seamless integration for large solar plants.
Key Features & Specifications
Performance
- Max. efficiency: 98.8% @480 V
- European efficiency: 98.4%
- Rated AC active power: 150,000 W
- Max. AC apparent power: 165,000 VA
- Max. AC active power (cosφ=1): 165,000 W
- MPPTs: 7 (up to 3 inputs each)
Input (DC)
- Max. input voltage: 1,100 V
- Operating voltage range: 200 V ~ 1,000 V
- Max. current per MPPT: 48 A
- Max. current per input: 23 A
- Max. short-circuit current per MPPT: 66 A
Output (AC)
- Output voltage: 380 V / 400 V / 480 V, 3-phase
- Nominal output current:
- 227.9 A @380 V
- 216.5 A @400 V
- 180.4 A @480 V
- Max. output current:
- 253.2 A @380 V
- 240.5 A @400 V
- 200.5 A @480 V
- AC grid frequency: 50/60 Hz
- Power factor range: 0.8 leading to 0.8 lagging
- THDi (current distortion): <1%
Protection & Safety
- Arc fault protection (AFCI)
- Smart string-level disconnector
- PID recovery
- Ground-fault protection
- DC & AC surge protection (Type II)
- Residual current monitoring
- Insulation resistance detection
- Terminal temperature detection
Communication & Monitoring
- Interfaces: RS485, USB
- Wireless: Smart Dongle (WLAN or 4G, optional), FusionSolar App
- MBUS support: Yes (isolation transformer required)
Design & Durability
- Cooling: Smart air cooling
- IP rating: IP66
- Weight: ≤99 kg (without mounting plate)
- Dimensions: 1,000 × 710 × 395 mm
- Operating temperature: –25°C to 60°C
- Altitude: Up to 4,000 m
Compliance & Certifications
- Safety: EN/IEC 62109-1/-2, IEC 62116, IEC 61727
- Grid connection standards: VDE-AR-N4105, EN 50549, RD 661, RD 1699, C10/11, etc.
