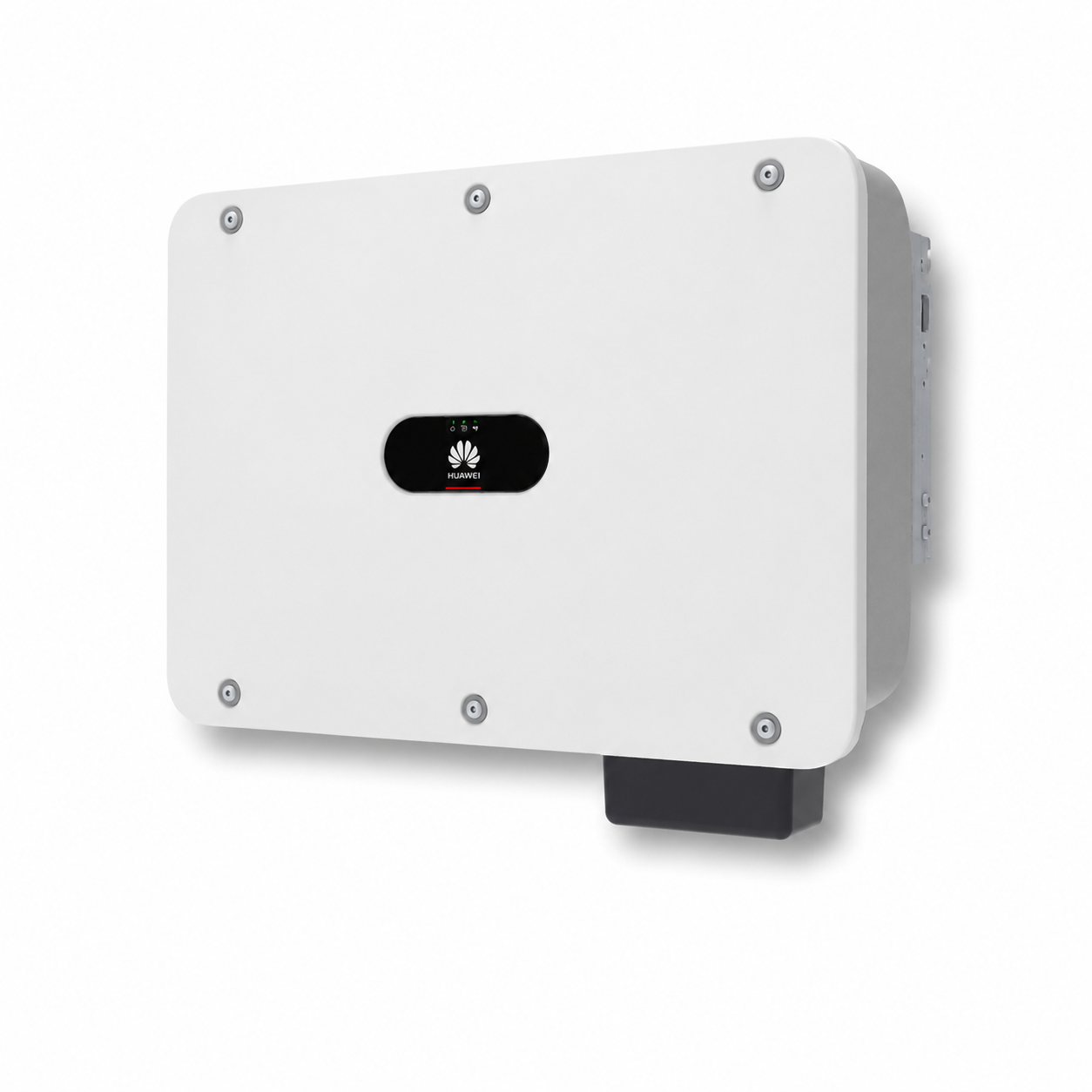

SUN2000-30/36/40KTL-M3 Smart PV Controller

Smarter, Safer, More Efficient Inverter for C&I Solar Systems

Power your commercial or industrial installation with Huawei’s next-generation inverter — the SUN2000-M5 series. Designed for enhanced safety, higher yields, and intelligent maintenance, this smart PV controller combines cutting-edge technology with robust reliability.

Key Features

Maximum Efficiency of 98.4%
Delivers exceptional performance even under challenging conditions.
Up to 2 MPPT Inputs
Flexible string design for optimal energy harvesting.
AI-Powered Arc Fault Protection (AFCI)
Advanced safety that detects and eliminates fire risks.
PID Recovery Built-in
Extends PV module lifespan by reversing degradation.
Touch-Free Maintenance
Online smart I-V curve diagnosis for string-level analysis.
No Fuses or Quick-Wear Parts
Reduces maintenance and improves system uptime.
Supports WLAN, Ethernet & 4G
Versatile communication options for seamless integration.

Specs at a Glance
- Rated Output Power: 12kW – 25kW
- Max PV Input Voltage: 1100 V
- MPPT Voltage Range: Up to 800 V
- Protection Rating: IP66
- Cooling Method: Smart Air Cooling
- Communication: RS485, WLAN, Ethernet, 4G Dongle (optional)
- Dimensions: 546 × 460 × 228 mm
- Weight: 21 kg

Add to quote

Central_Solar_Supplies_Huawei_SUN2000_30-40kW_Datasheet

Central_Solar_Supplies_Huawei_SUN2000_30-40kW_User_Manual

Central_Solar_Supplies_Huawei_Warranty

The Huawei SUN2000-30/36/40KTL-M3 Smart PV Controller delivers efficient three-phase solar power conversion for commercial and industrial PV systems. Available in 30 kW, 36 kW and 40 kW models, the range reaches a maximum efficiency of 98.7% and uses four MPP trackers with eight PV inputs to give installers greater flexibility when designing larger solar arrays.

Furthermore, the SUN2000-M3 range supports a maximum DC input voltage of 1,100 V and an MPPT operating voltage range of 200 V to 1,000 V. As a result, installers can accommodate a wide range of PV string configurations while maintaining efficient energy conversion across varying operating conditions.

Huawei also equips the range with intelligent string monitoring across all eight inputs. In addition, a fuse-free design helps simplify system architecture, while integrated safety features include anti-islanding protection, AC overcurrent protection, DC reverse-polarity protection, PV string fault monitoring, residual current monitoring and arc-fault protection. The controller also includes AC and DC surge protection as well as integrated PID recovery.

For easier system management, the M3 range includes integrated WLAN and supports the Huawei FusionSolar App. Moreover, RS485 communication comes standard, while optional Huawei Smart Dongles can add WLAN, Ethernet and mobile connectivity.

Finally, Huawei designed the SUN2000-30/36/40KTL-M3 for demanding installation environments. The IP66-rated enclosure protects the inverter against dust and water ingress, while natural convection cooling reduces the need for active cooling components. The unit operates across a temperature range of -25°C to 60°C and supports installation at altitudes of up to 4,000 m, with derating above 2,000 m.
